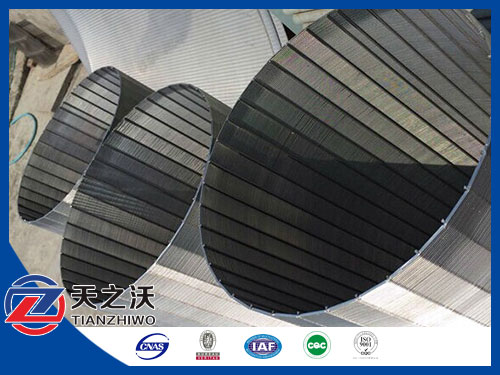

1.v-wire water well screen is made up of rods and profile wire.
2.The rod can be round wire,triangular wire or trapezoid wire
3.The profile wire is triangular wire (V-shaped wire).Wedge wire screen has a structure
and high open area,as well as accurate slot dimension.
4.At the same time,water well screen have heat-resisting,anti-corrosive,good machine
capability,last long,safety and reliability and so on characteristics.
5.It can be used in many kinds of medium filtering.

Technical data of Wedge wire filter cylinder


No.	(mm)TYPE	OD (mm)	ID (mm)	Support wire Number	Filter direction
1	SRD25.4	25.4	18.6	12	FOTI
2	SRD 33	33	24	8	FOTI
3	SRD 37	37	28	8	FOTI
4	SRD 40	40	31	8/10	FOTI/FITO
5	SRD 45	45	36	10/12	FOTI/FITO
6	SRD 48	48	38	12	FOTI/FITO
7	SRD 60	60	51	12	FOTI/FITO
8	SRD 70	70	61	12/18	FOTI/FITO
9	SRD 85	85	76	18	FOTI/FITO
10	SRD 110	110	101	24	FOTI/FITO
11	SRD120	120	111	24	FOTI/FITO

Remarks:
1. Make tubes with different material according to user requirements.
2. Slot should be bigger than 0.020mm and less that 2500mm long.

v-wire water well screen has been known as the world's leading manufacturer and provider of industrial filters
and water well screens since 1904.We provide screening solutions to almost every industry,including:
·Architecture & Construction
·Food & Beverage Screens
·OEM Screen Components
·Refining & Petrochemical
·Waste Water Treatment
·Water Well & Oil well
·Coal & Mine
