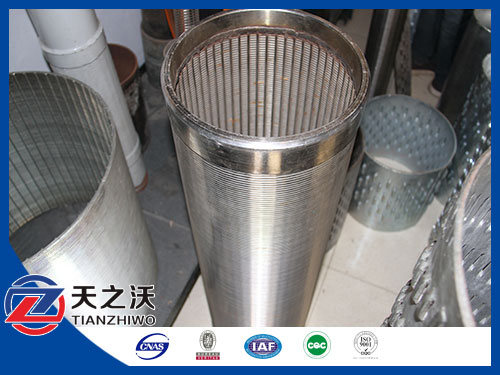

water well stainless steel screen pipes

Water well screen pipes is composed of ribs and V—winding wire, manufactured with advanced special welding equipment.Ribs and V—winding wire are connected with resistance weld by special equipment and has the advantages, such as, high welding strength, homogeneous gap, corrosion resistance, large effective filtration area, good permeability,simple structure, and slot size is 20 micron or larger for users to choose freely.

Features:

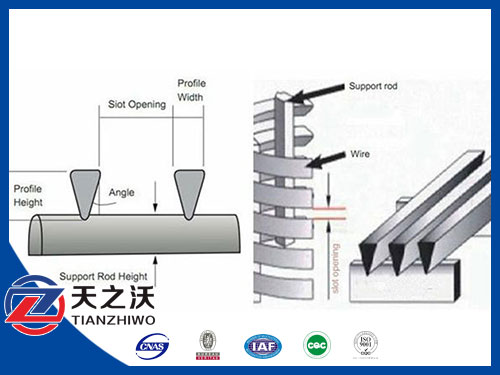

1.adoption of the wedged wires made a V profile slot. This design ensures the fluent of water filteration and more effective
2.wedged wires are spirally wound around a cage of longitudinal support rods in succession which formed high-density uniformed slots and avoid clogging. So that the high production efficiency and long life service of the well are gaurenteed.
3.arrangement of the longitudinal support rods and the successive slots provide higher compressive property

Sepecification:

 Diameter Available:1.5'', 2", 3", 4", 6", 8", 10", 12", 14"

 Slot (mm):0.15, 0.25, 0.50, 0.75, 1.00, 1.50, 2.00, 3.00mm

Lengths:3Mts. & 6Mts.

Material:Low Carbon Galvanized Steel ( LCG ) and Stainless Steel ( SS-304 316  304L   316L)
