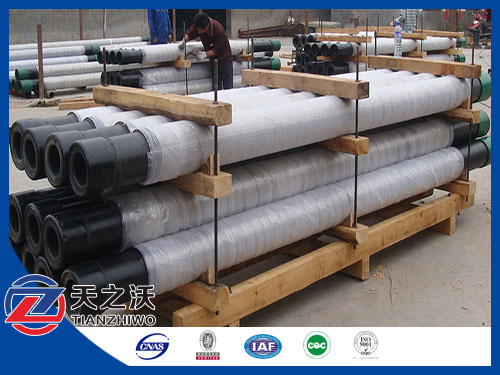

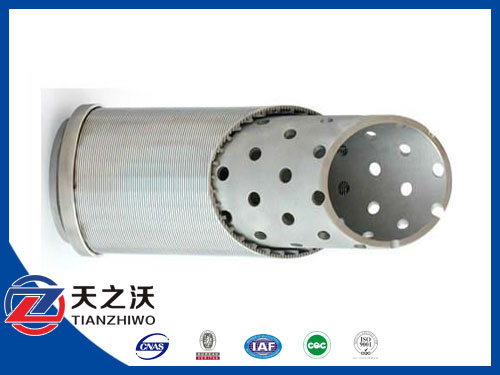

Pre-packed screen used as stand-alone screen Pre-packed screen provide excellence service of

sand control in oil, gas and water wells for its unique construction. Pre-packed screen is a

modification of pipe-based wire wrapped screen. Its addition of a modular gravel pack makes

it especially suitable for sand control where conventional gravel packing fails.

Base Pipe				Gravel Pack	Perforations		Screen
OD (in.)	ID (in.)	Weight (lbs.)	Coupling OD (in.)	Thickness (in.)	Size (in.)	Holes/ft.	OD (in.)	Cylinder Area (sq. in./ft)	.006 GA Inlet Area (sq. in./ft)
1.9	1.61	2.75	2.2	0.144	3/8	84	2.72	102.49	6.46
2.063	1.75	3.25	2.5	0.144	3/8	84	2.883	108.63	6.84
2.375	1.99	4.6	2.875	0.144	3/8	96	3.195	120.39	7.58
2.875	2.44	6.4	3.5	0.144	3/8	108	3.695	139.23	8.77
3.5	2.99	9.2	4.25	0.144	3/8	132	4.32	162.78	10.26
4	3.55	9.5	4.5	0.144	3/8	144	4.82	181.62	11.44
4.5	4	11.6	5	0.144	3/8	156	5.32	200.46	12.63
5	4.41	15	5.563	0.144	3/8	168	5.82	219.3	13.82

Pre-packed screens are ideal for horizontal boreholes and boreholes that deviate from vertical.

the pre-packed screen is well suited for situations where placing a conventional gravel pack is difficult.

the screen assembilies save time and reduce logistical planning, because no handling

and no installation of bulk pack material is needed.
