Diameter:
Material:
Slot:
End Connection:
thickness:

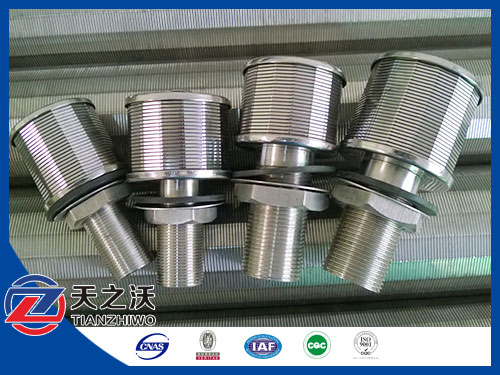

Wedge wire Screen Filter nozzles are widely used in various industries, especially suitable for water treatment or liquid filtration.
The main part of the nozzle is stainless steel wedge wire screen . It’s a new type filter component.
Wedge wire screen nozzles has a long life. The precise filter ratings are from 20 microns. It is made by welding with profile wire on every connection spots.
According to diddferent application, There are many different kinds of connectors for the stainless steel nozzle. NPT/ TPI/M27/DIN11851-SC
Technical data of Wedge wire Screen Filter nozzles
|
|
(mm)TYPE |
OD |
ID |
Support wire Number |
Filter direction |
|
1 |
SRD25.4 |
25.4 |
18.6 |
12 |
FOTI |
|
2 |
SRD 33 |
33 |
24 |
8 |
FOTI |
|
3 |
SRD 37 |
37 |
28 |
8 |
FOTI |
|
4 |
SRD 40 |
40 |
31 |
8/10 |
FOTI/FITO |
|
5 |
SRD 45 |
45 |
36 |
10/12 |
FOTI/FITO |
|
6 |
SRD 48 |
48 |
38 |
12 |
FOTI/FITO |
|
7 |
SRD 60 |
60 |
51 |
12 |
FOTI/FITO |
|
8 |
SRD 70 |
70 |
61 |
12/18 |
FOTI/FITO |
|
9 |
SRD 85 |
85 |
76 |
18 |
FOTI/FITO |
The stainless steel slot tube is commonly used for filtration and separation in :
1 . Water well and oil/gas well
2 . water and waste water treatment
3 . Water supply
4 . Petro Chemical
5 . Food and beverage
6 . Pulp and paper
7 . Sugar and Starch
