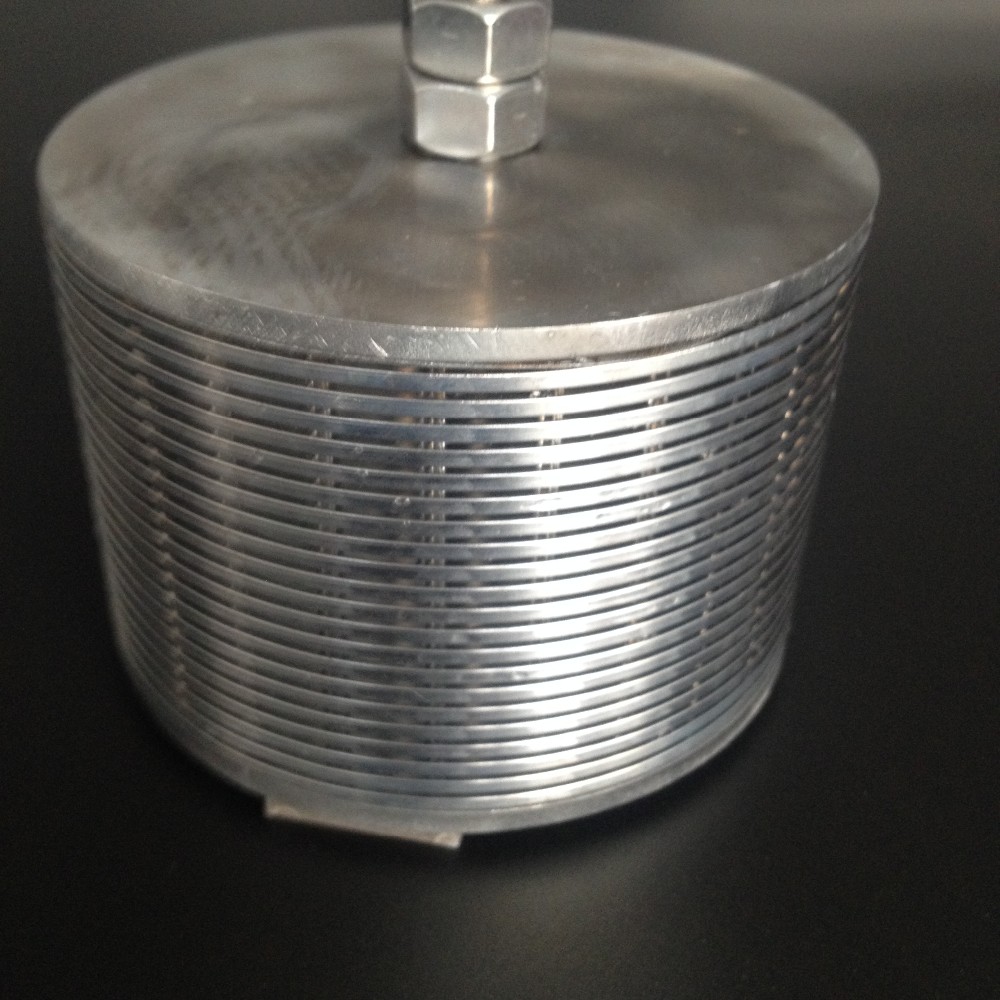

SS316 Stainless Steel Water Treatment Sand Filter Nozzle is a kind of water filter nozzle. It is made of Johnson wedge wire screen. The filtering slot is V shape. The special structure makes the filter nozzle a high filtering efficiancy .
Material: 316L wedge wire screen 18S 1.52*2.54mm
Slot size: 0.7mm
Fitlering Open Area: 41%
|
Filter nozzle Name |
SS316 Stainless Steel Water Treatment Sand Filter Nozzle |
|
Filter nozzle Code |
SS316JSFN |
|
Main feature of Stainless Steel 316L Johnson Screen Nozzle Filters |
High strength; |
As pictures shows , We can see specifications for the filter nozzle.
This style is the widely using screen for filtration and separation in liquid/gas, mining, food, water wasting, and so on.
Screen's wedge-shaped wire design provides maximum open intake area. In a wedge wire application, the debris is filtered by the smooth side of the standard wound wedge wire element.
The screen's vertical support rods are rigidly welded at every intersection, giving a smooth surface to further enhance the free flow of water.
Our exclusive, high-tech welding technique also delivers a screen with outstanding strength and resistance to corrosion.
Profile wire sizes OF SS316 Stainless Steel Water Treatment Sand Filter Nozzle
|
SS304 /1.4301 |
SS316L/1.4404 |
|
10S W0.75mm* H1.425mm |
10S W0.75mm* H1.425mm |
|
12S W1mm* H2mm |
12S W1mm* H2mm |
|
18S W1.52mm* H2.54mm |
18S W1.52mm* H2.54mm |
More size of screen
FOTI (Flow outside in), This kind of SS316 Stainless Steel Water Treatment Sand Filter Nozzle filtering direction from outside to inside:
|
OD (mm) |
Material |
Profile wire size |
Support rod size |
Support rod no. |
Filtering Slot size |
|
37 |
SS304/316L |
10S/12S/18S |
Q22/Q25 |
8 |
0.025~3.00mm |
|
40 |
SS304/316L |
10S/12S/18S |
Q22/Q25 |
10 |
0.025~3.00mm |
|
42 |
SS304/316L |
10S/12S/18S |
Q22/Q25 |
10 |
0.025~3.00mm |
|
45 |
SS304/316L |
10S/12S/18S |
Q22/Q25 |
12 |
0.025~3.00mm |
|
48 |
SS304/316L |
10S/12S/18S |
Q22/Q25 |
12 |
0.025~3.00mm |
|
60 |
SS304/316L |
10S/12S/18S |
Q22/Q25 |
12 |
0.025~3.00mm |
|
64 |
SS304/316L |
10S/12S/18S |
Q22/Q25 |
18 |
0.025~3.00mm |
|
70 |
SS304/316L |
10S/12S/18S |
Q22/Q25 |
18 |
0.025~3.00mm |
|
76 |
SS304/316L |
10S/12S/18S |
Q22/Q25 |
18 |
0.025~3.00mm |
|
85 |
SS304/316L |
10S/12S/18S |
Q22/Q25 |
18 |
0.025~3.00mm |
|
100 |
SS304/316L |
10S/12S/18S |
Q22/Q25 |
24 |
0.025~3.00mm |
SS316 Stainless Steel Sand Filter Nozzle will be used for water treatment .
